Industrial PVD Ion Plating Machine, PVD Nano Thin Films Deposition For Biocompatible Coatings

Name: Industrial PVD Ion Plating Machine PVD Nano Thin Films Deposition For Biocompatible Coatings
Brand: ROYAL
Price: 1 USD

Wholesale Industrial PVD Ion Plating Machine, PVD Nano Thin Films Deposition For Biocompatible Coatings from china suppliers

Brand Name : ROYAL

Model Number : RTAC1000

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 15 sets per month

Delivery Time : 6 to 12 weeks

Packaging Details : Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Chamber : Vertical Orientation, 1-door,

Material : Stainless Steel 304/316

Vacuum Technology : Arc evaporation + MF Magnetron Sputtering

Deposition Sources : MF sputtering cathodes+ Arc Evaporation

Coating Films : Metal film plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC

name : Ion PVD Plating Machine

Factory Location : Shanghai city, China

Worldwide Service : Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service : Machine operation, maintenance, coating process Recipes, program

Warranty : Limited warranty 1 year for free, whole life for machine

OEM & ODM : available, we support tailor made design and fabrication

Contact Now

Dental Crowns Ion Plating Machine, PVD Vacuum Deposition Coater on Dental Tools Coating Equipment

PVD vacuum coating technology in the medical industry , one important application is the metal instruments, like: needle holders, cutters, dental tools etc.

Considering the biocompatibility, Titanium material is used for

PVD coating equipment mainly for decoration coatings on the metal, ABS parts. The ranged colors are silver, black, gold. When introducing different reactive gas and target materials the colors are changing slowly, during the deposition changing period, to get the idea desired colors.

This is operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available.

So that the AUTO COATING model is possible after the recipes are logged in. The full automatically operation is very helpful for primer PVD operators.

The advantages:

1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.

MODEL	RTAC1000-SP
MATERIAL	Stainless Steel (S304)
CHAMBER SIZE	Φ1000*1000mm (H)
CHAMBER TYPE	Cylinder, vertical, single door
SINGLE PUMP PACKAGE	Rotary Piston Vacuum Pump
	Roots Vacuum Pump
	Turbo Molecular Pump
TECHNOLOGY	Magnetron Sputtering + Ion Plating
POWER SUPPLY	MF power supply + Bias Power supply
DEPOSITION SOURCE	2 sets of Cylinder Sputtering Target + 6 sets of Cathodic Arc Sources
CONTROL	PLC+Touch Screen
GAS	Gas Mass Flow Meters
SAFETY SYSTEM	Numerous safety interlocks to protect operators and equipment
COOLING	Cooling Water
CLEANING	Glow Discharge Cleaning
POWER MAX.	90KW
AVERAGE POWER CONSUMPTION	40KW

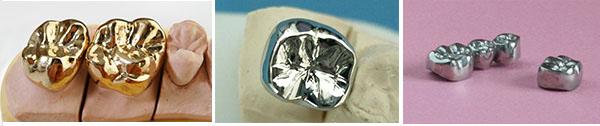

Coating Samples

Industrial PVD Ion Plating Machine, PVD Nano Thin Films Deposition For Biocompatible Coatings

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
