DC Magnetron Sputtering Thin Film Coating Machine, Jewelry IPG gold Coating Equipment

Name: DC Magnetron Sputtering Thin Film Coating Machine Jewelry IPG gold Coating Equipment
Brand: ROYAL
Price: 1 USD

Wholesale DC Magnetron Sputtering Thin Film Coating Machine, Jewelry IPG gold Coating Equipment from china suppliers

Brand Name : ROYAL

Model Number : RTAC-SP

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 6 sets per month

Delivery Time : 12 weeks

Packaging Details : Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Deposition Sources : Sputtering + cathodic arc evaporation

Technique : PVD, Balanced/Unbalanced Magentron Sputtering Cathode

Applications : Metal jewelry, watches, necklace, ear rings, finger rings, bracelets, handbag chains, logos

Film Features : bright colors, wear resistance, strong adhesion, decorative coating colors

Factory Location : Shanghai city, China

Worldwide Service : Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service : Machine operation, maintenance, coating process Recipes, program

Warranty : Limited warranty 1 year for free, whole life for machine

OEM & ODM : available, we support tailor made design and fabrication

Contact Now

Vacuum coating machine

Vacuum coating machine adopts advanced PLC control, and is equipped with computer automatic shift vacuum gauge and 3 flow controllers. Invert arc power supply and computer PLD automatic temperature control.
Our equipment is widely used in ceramic,mosaic,hardware,clocks,mobile phones,electronics toys,decorations and other fields.

Main Features

1. Plated tile gold or silver film is bright and delicate with fast coating.
2. Well-adapted, simple maintenance, stable work.
3. Non-standard special equipment design and manufacturing shall be based on customers’ product, production and specific requirements on film.
4. Magnetron target, medium frequency twin targets and etc can be installed additionally.

MODEL				RTAS1000
TECHNOLOGY				DC magnetron sputtering + arc cathodes deposition
CHAMBER MATERIAL				Stainless Steel (S304)
CHAMBER SIZE				Φ1000*1000mm (H)
CHAMBER TYPE				Regular octahedron chamber, 2-doors
ROTATION RACK & JIG SYSTEM				6 (8)satellite, Max. weight: 400kgs
POWER SUPPLIES				Qty. of Sputtering: 224 KW Bias of Power Supply: 124W AE power supply for option Ion Source Power supply 2 sets, AE power supply for option
DEPOSITION MATERIAL				Ti, Au, Ag etc.
DEPOSITION SOURCE				2 pairs (4 pieces) Sputtering Cathodes + 2 Ion Source Coating Area: Dia800mm*H550mm; Uniformity Area: ±10~15%
CONTROL				PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models)
PUMP SYSTEM				Rotary Vane Pump: SV200 - 1 set (Leybold)
				Roots Pump: WAU501 - 1 set (Leybold)
				Holding Pump: D60C-1set- (Leybold)
				Magnetric Rotor Suspension Molecular Pump: MAG2200 - 2 sets (Leybold)
GAS MASS FLOW CONTROLLER				3 channels, Made in America (MKS brand)
VACUUM GAUGE				Model: ZDF-X-LE, Made in China
Linear Ion Source				2 pieces Pre-treating, plasma cleaning + assisted deposition
SAFETY SYSTEM				Numerous safety interlocks to protect operators and equipment
HEATING				Heaters: 20KW. Max. temp.: 400℃
COOLING				Industrial Chiller (Cold Water)
POWER MAX.				100KW (Approx.)
AVERAGE POWER CONSUMPTION				45 KW (Approx.)
GROSS WEIGHT				T (Approx.)
FOOT PRINT				( LWH) 40004000 4000 MM
POWER ELECTRICAL				AC 380V/3 phases/50HZ

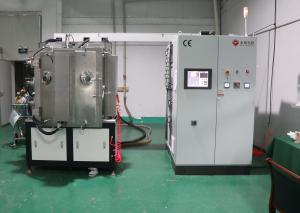

DC Magnetron Sputtering Thin Film Coating Machine, Jewelry IPG gold Coating Equipment

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
