Stainless Steel Forks Gold Plating Machine

Name: Stainless Steel Forks Gold Plating Machine
Brand: ROYAL
Price: 1 USD

Wholesale Stainless Steel Forks Gold Plating Machine from china suppliers

Brand Name : ROYAL

Model Number : RTAS

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 12 weeks

Packaging Details : Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Price : negotiable

Coating film : Decorative Film

Substrate : stainless steel, ceramic, ABS

Coating color : Gold, bronze, brass, grey to black

Deposition Materials : Ti,Cr, Zr, TiAl Etc.

Factory Location : Shanghai city, China

Worldwide Service : Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service : Machine operation, maintenance, coating process Recipes, program

Warranty : Limited warranty 1 year for free, whole life for machine

OEM & ODM : available, we support tailor made design and fabrication

Contact Now

Stainless steel flatware PVD Brass and Bronze Coating Machine, Forks TiN gold Plating Equipment

Tableware TiN Gold Coating Machine Advantages

1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.

Tableware TiN Gold Coating Machine Specifications

MODEL				RTAS1200
TECHNOLOGY				Magnetron Sputtering + Ion Plating
MATERIAL				Stainless Steel (S304)
CHAMBER SIZE				Φ1200*H1500mm
CHAMBER TYPE				Cylinder, vertical, 1-door

DEPOSITION MATERIAL				Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc.
DEPOSITION SOURCE				14 sets steered arc cathodes
GAS				MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL AND OPERATION				PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM				SV300B - 2 sets (Leybold)
				WAU1001 - 1 sets (Leybold)
				D60T- 1 set (Leybold)
				Turbo Molecular Pumps: 3* F-400/3500
PRE-TREATMENT				Bias power supply: 1*36 KW
SAFETY SYSTEM				Numerous safety interlocks to protect operators
COOLING				Cold Water
POWER ELECTRICAL				480V/3 phases/60HZ ( USA compliant)
				460V/3 phases/50HZ ( Asia compliant)
				380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT				L3000W3000H2000mm
TOTAL WEIGHT				7.0 T
FOOTPRINT				( LWH) 50004000 4000 MM
CYCLE TIME				30~40 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX..				155 KW
AVERAGE POWER CONSUMPTION (APPROX.)				75 KW

Stainless Steel Forks Gold Plating Machine

Product Tags:

titanium nitride coating equipment

tin coating machine

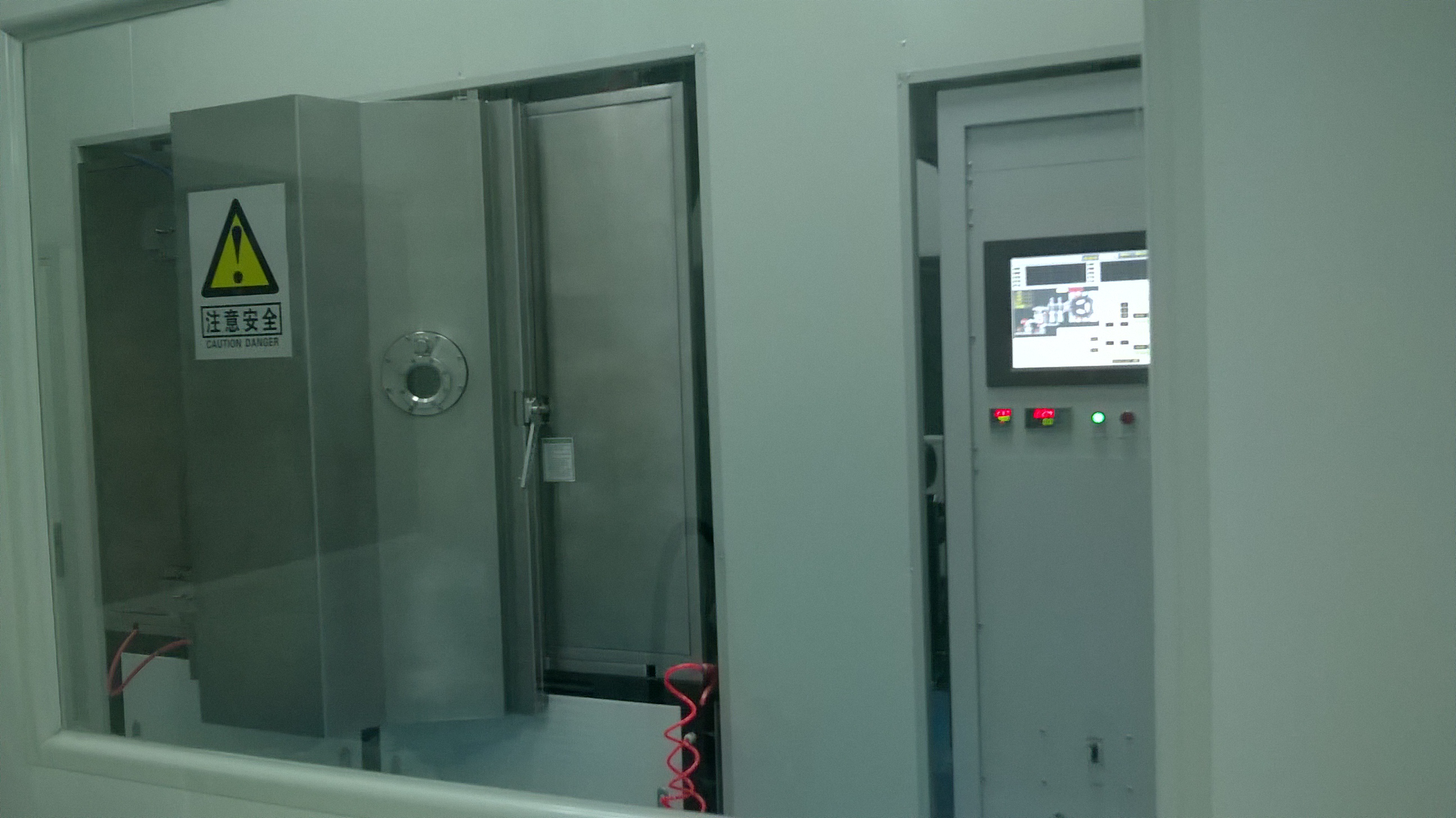

Stainless Steel Forks Gold Plating Machine Images
